Name: OIL WELL SUPPLY F42 OEM Air Starter Replacement /Upgrade
Brand: Ingersoll Rand
SKU: OIL WELL SUPPLY-F42-AIR-STARTER

OIL WELL SUPPLY F42 OEM Air Starter Replacement /Upgrade

Manufacturer: Ingersoll Rand

Guaranteed 100% Authentic

Made in the USA

Condition: New

*Rebuilt Models Have the letter "R" at the end of their model number

SKU:

OIL WELL SUPPLY-F42-AIR-STARTER

Description

Description

Ingersoll Rand air starters for the Oil Well Supply F42. The Oil Well Supply F42 is a diesel engine of 7.9 liters (481 cu in). Our Model Finder does not list a single recommended starter for it, so we match one to your engine's flange, ring gear and air supply. The Ingersoll Rand starter series below are rated for engines of this size.

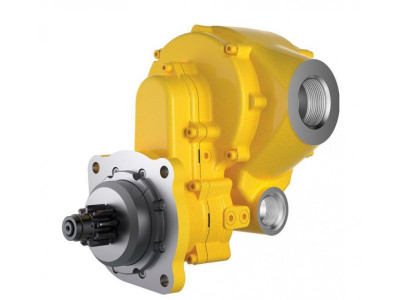

Starter Series Rated for the F42

Series	Type	IR diesel rating	Supply pressure
SS100 series	Vane	Up to 10 L	30-150 psi
SS350 series	Vane	Up to 20 L	30-150 psi
150BM series	Vane	Up to 27 L	90-150 psi

Ingersoll Rand publishes these ratings for diesel engines. It rates its starters for carbureted gas engines of roughly twice the diesel displacement.

Flange, Rotation and Pinion

Flange: SAE No. 3. Rotation: left hand. Pinion code: 16. Pinion codes are specific to each starter series, so we confirm the tooth count against your ring gear.

Other Oil Well Supply Engines of Similar Size

Oil Well Supply F42 Air Starter FAQ

What air starter fits the Oil Well Supply F42?

It depends on the flange, ring gear and rotation of your installation. Send us the model number from your existing starter's nameplate, or the engine serial number, and we will confirm the right Ingersoll Rand starter. The series above are the ones rated for an engine of 7.9 L.

Can I replace an electric starter on the F42 with an air starter?

Air starters mount on standard SAE flanges, so they are often used in place of electric starters where batteries, sparks or cold starts are a concern. See air vs. electric starters, and call us so we can confirm the flange, pinion and air supply.

Need a Starter for Your F42?

AirStartersDirect.com is a factory-authorized Ingersoll Rand distributor operated by Zampini Industrial Group, which has supplied engine starting equipment since 1987. Call 1-800-353-4676 or request a quote with your engine make, model and serial number.

Sources: AirStartersDirect Air Starter Model Finder (Ingersoll Rand application data) and the Ingersoll Rand Engine Starting Systems catalog.

Ingersoll Rand pneumatic air starters can replace any factory mounted starter engine and simultaneously offer a variety of helpful benefits. Compared to conventional electric starters, a pneumatic air starter occupies considerably less space as it is run by air. Pneumatic air starters are also considered safer in hazardous environments as they do not produce electrical sparks like electric starters sometimes do, thus eliminating the risk of igniting flammable materials that may be present.

Ingersoll Rand air starters have significantly more torque than electric starters of equivalent size, and that allows even a small air starter to start very large engines and turbines. In addition, electric starters as well as their wiring may become excessively hot in the event that it takes longer than expected to start the engine, while air-starters can be run for as long as their air supply lasts. Turbine starters provide even more torque and tend to be simpler, and therefore are a natural fit for turbine engines. Turbine air starters are utilized extensively on large turbofan engines commercial and military aircraft; as well as marine ships and vessels, trains, heavy construction equipment, and more.
