B006PVR374-03-31P Engine Barring Motor by Ingersoll Rand

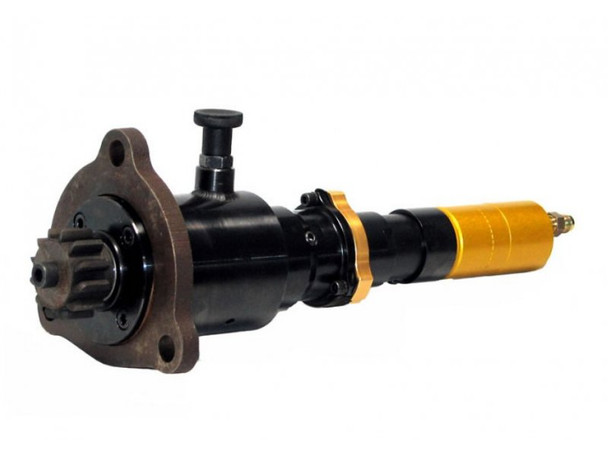

The Ingersoll Rand B006PVR374-03-31P is a genuine IR B006-series pneumatic barring motor with pendant control. It turns a diesel or gas engine slowly and precisely, in either direction, so one technician can set timing, adjust valves, align couplings or inspect the engine. It produces 152 ft-lb (207 N·m) of breakaway torque at 90 psi and turns at 23 rpm at maximum power. It mounts on an SAE No. 3 flange and drives the ring gear through a 12-tooth, 6/8 pitch code 31 pinion. Ingersoll Rand rates the B006 for diesel engines up to 100 liters and gas engines up to 200 liters, which covers the Caterpillar 3500 family.

B006PVR374-03-31P Specifications

Barring a Caterpillar Engine with the B006

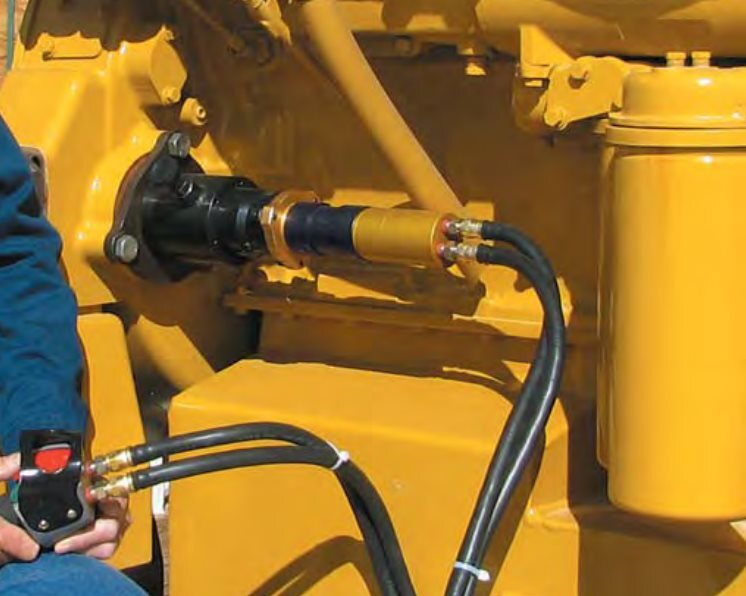

A B006PVR374-03-31P mounted on a Caterpillar 3408. The technician turns the engine with the hand-held pendant, so they can watch the timing marks or valve train while the engine moves. Photo: Ingersoll Rand.

What a Barring Motor Is Used For

A barring motor rotates a stopped engine slowly and stops it exactly where you need it. Turning a large engine by hand with a barring bar is slow, tiring and risky. The B006 does it with compressed air at a steady 23 rpm, and you can reverse it at any time. Typical jobs include:

• Timing adjustments: bring each cylinder to top dead center precisely.

• Valve and injector adjustments: position each cam lobe for setting lash.

• Coupling and alignment work: rotate the crankshaft and driven equipment together during alignment.

• Inspections and routine maintenance: borescope checks, ring gear inspection and other scheduled or unplanned service.

Because it runs on compressed air, the B006 has no electrical arcing, so it suits hazardous locations, offshore platforms, gas compression stations and field service.

Engines the B006PVR374-03-31P Fits

Ingersoll Rand rates the B006 for diesel engines up to 100 liters and gas engines up to 200 liters. On the Caterpillar 3500 family, that covers:

The pinion has to match your engine's ring gear. The code 31 pinion is 12 teeth at 6/8 diametral pitch, the same pinion used on Ingersoll Rand's SAE 3 air starters, so it suits engines that use 6/8-pitch starter ring gears. For other ring gears, Ingersoll Rand offers the B006 with pinion codes 15, 29, 77, 79, 85, 94, 893, 895 and 942. Send us the engine make, model and serial number and we will confirm the right configuration.

How to Read the Model Number

B006PVR374-03-31P FAQ

What is the difference between the B006PVR374-03-31P and the B006PVR374-01-31P?

Only the mounting flange differs. The -03 version bolts to an SAE No. 3 flange and the B006PVR374-01-31P bolts to an SAE No. 1 flange. Torque, speed and pinion are the same.

Should I choose the B006 or the T480?

Choose by engine size. The B006 covers diesel engines up to 100 L and gas engines up to 200 L, weighs 25 lb with pendant and delivers 152 ft-lb. The T480PVRP-03-31P covers diesel engines up to 500 L and gas engines up to 1,000 L. It delivers 322 ft-lb at 65 rpm, weighs 58 lb and has an integral disc brake that holds the engine whenever the motor is stopped.

What air supply does the B006 need?

Supply clean, dry compressed air and do not exceed 90 psi (6 bar) at the motor inlet. If your plant air runs higher, install a regulator ahead of the pendant. A 43551-2 muffler is available to reduce exhaust noise.

Can the B006 stay mounted on the engine?

Yes. Ingersoll Rand designed the B006 to work either as a portable tool you move from engine to engine or as a permanently mounted unit. Thanks to the adjustable mounting flange, it can be clocked to suit the space around the flywheel housing. Always make sure the barring motor is disengaged before the engine is started.

Does the B006 have a brake?

No. The B006 stops when you release the pendant control. If you need the engine held by a brake while the motor is stopped, choose the T480, which has an integral disc brake that is always engaged when the motor is not running.

Buy from a Factory-Authorized Ingersoll Rand Distributor

AirStartersDirect.com is a factory-authorized Ingersoll Rand distributor operated by Zampini Industrial Group, which has supplied engine starting equipment since 1987. Every B006PVR374-03-31P we sell is new, genuine Ingersoll Rand equipment. We can also supply pendant controls, hoses, mufflers and the complete B006 series.

Need help confirming fit? Call 1-800-353-4676 with your engine make, model and serial number for a fast quote and free selection help.

Specifications source: Ingersoll Rand, B006 Pneumatic Barring Motor and the Ingersoll Rand Engine Starting Systems catalog.
