ST699BP03R31 Turbine Air Starter | Full Arc (30-90 PSI) | by Ingersoll Rand

ST699BP03R31 Turbine Air Starter | Full Arc (30-90 PSI) | by Ingersoll Rand

SKU:: ST699BP03R31
UPC:

Price: $4,124.59

Current Stock:

Quantity:

Get Our BEST Pricing FAST - click below

Click Here to get an air starter quote FAST!

Our Phone #: 1-800-353-4676

Our Email: [email protected]

Description

Description

The Ingersoll Rand ST699BP03R31 is a genuine IR ST600-series pre-engaged turbine air starter built for 30 to 90 psi air supplies. It delivers up to 67 hp and 290 ft-lb of breakaway torque at just 90 psi from a lightweight 39 lb inline package, with an overtorque safety clutch that slips between 330 and 440 ft-lb. It mounts on an SAE No. 3 flange and drives a right-hand 12-tooth 6/8 pitch pinion. Ingersoll Rand rates the ST600 for diesel engines from 16 to 80 liters. It is for air only.

ST699BP03R31 Specifications

Ingersoll Rand ST699BP03R31 technical data
Manufacturer / series	Ingersoll Rand ST600 series (ST699)
Motor type	Turbine, 99% (full) arc, lube-free
Engagement	Pre-engaged, with smooth pre-engagement for limited ring gear wear
Maximum power	67 hp (50 kW)
Breakaway torque	290 ft-lb (393 N·m) at 90 psi
Overtorque safety clutch	Slips between 330 and 440 ft-lb (447 to 596 N·m)
Operating pressure	30 to 90 psi (2.1 to 6.2 bar)
Drive medium	Compressed air only
Gear ratio	"B" ratio
Mounting	SAE No. 3 flange with extended pilot
Pinion (code 31)	12 teeth, 6/8 pitch, right-hand
Rotation	right-hand (R)
Air inlet	1-1/2 in. NPT through the standard ST700-K166 inlet flange kit (SAE J518C flange)
Air consumption	1,700 scfm at maximum power
Engine size	Diesel 16 to 80 L (1,000 to 5,000 cu. in.); carbureted gas 32 to 160 L
Weight	39 lb (17.7 kg); inlet flange kit 4.5 lb (2.0 kg)
Lubrication	None required for the turbine motor
Service kits	ST600-TK1 tune-up kit, ST600-SK1 seal kit

Performance by Supply Pressure

Ingersoll Rand publishes these figures for the ST699B:

Supply pressure	Breakaway torque	Speed at max power	Max power	Flow at max power
30 psi (2.1 bar)	110 ft-lb (149 N·m)	1,950 rpm	20 hp (15 kW)	600 scfm (283 L/s)
60 psi (4.1 bar)	195 ft-lb (264 N·m)	2,200 rpm	41 hp (31 kW)	1,150 scfm (543 L/s)
90 psi (6.2 bar)	290 ft-lb (393 N·m)	2,400 rpm	67 hp (50 kW)	1,700 scfm (802 L/s)

If you can supply 120 to 150 psi, the part-arc ST650BP03R31 uses a smaller air flow for the same job.

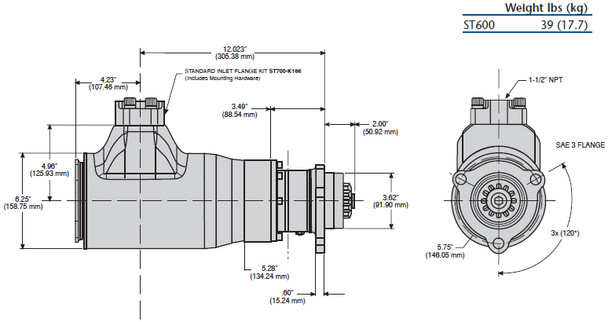

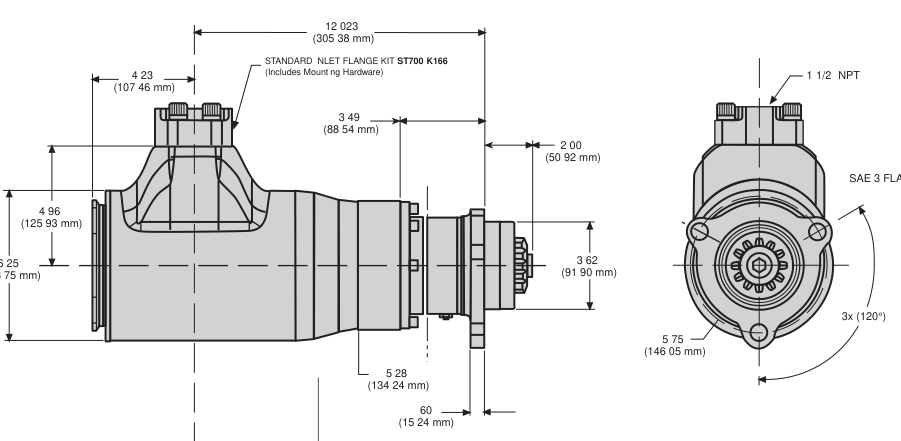

ST699BP03R31 Dimensions

Dimension	Inches	Millimeters
Inlet centerline to mounting flange face	12.02	305.4
Rear of starter to inlet centerline	4.23	107.5
Pinion projection beyond the flange face	2.00	50.9
Nose pilot diameter	3.62	91.9

Reference dimensions from Ingersoll Rand. Confirm critical clearances against the certified drawing before you fabricate brackets or plumbing.

Confirming Fit

Match the full model number on your existing starter's nameplate, or send us the engine make, model and serial number. You can also use our Air Starter Model Finder.

How to Read the Model Number

Code	Meaning
ST6	ST600 series turbine starter
99	Percent arc: 99% (full arc, 30 to 90 psi)
B	Gear ratio
P	Pre-engaged
03	SAE No. 3 mounting flange
R	right-hand rotation
31	Pinion: 12-tooth 6/8 pitch

Why Choose the ST699BP03R31?

Lightest in its class. At 39 lb, Ingersoll Rand calls the ST600 the lightest starter in its class.
No lubricator, no oil mist.
Protects the ring gear. Smooth pre-engagement limits wear, and the overtorque clutch slips at 330 to 440 ft-lb.
Easy to fit. Extended pilot, offset pre-engage ports and 8 orientation options.

ST699BP03R31 FAQ

What is the opposite-rotation version of the ST699BP03R31?

The ST699BP03L942 is the opposite-rotation counterpart. Power, flange and gearing are the same; only the rotation and the matching pinion code differ. Match the rotation printed on your existing starter's nameplate.

Can it run on natural gas?

No. Ingersoll Rand specifies the ST600 for air only. For gas, ask about the SS800 vane series or the ST2000 "BG" turbine models.

What is the difference between the ST650 and the ST699?

Both share the ST600 housing. The ST650 has a 50% turbine arc for 90 to 150 psi supplies; the ST699 has a 99% arc for 30 to 90 psi supplies. Choose by the pressure you can deliver at the starter.

What air supply and accessories does it need?

Provide a 30 to 90 psi supply through a 1-1/2 in. line, with enough receiver volume to deliver up to 1,700 scfm while the engine cranks. Ingersoll Rand's matching accessories include the SRV150 1-1/2 in. relay valve, ST900-267-24 strainer, solenoid valves and push-button valves.

Buy from a Factory-Authorized Ingersoll Rand Distributor

AirStartersDirect.com is a factory-authorized Ingersoll Rand distributor operated by Zampini Industrial Group, which has supplied engine starting equipment since 1987. Every ST699BP03R31 we sell is new, genuine Ingersoll Rand equipment. We stock the complete ST600 series and the relay valves, strainers and service kits that go with it.

Need help confirming fit? Call 1-800-353-4676 with your engine make, model and serial number for a fast quote and free selection help.

Specifications source: Ingersoll Rand Engine Starting Systems catalog and Ingersoll Rand ST600 Series Air Starters.
