ST950CP03L26S-3A Turbine Air Starter by Ingersoll Rand

ST950CP03L26S-3A Turbine Air Starter by Ingersoll Rand

SKU:: ST950CP03L26S-3A
UPC:

Price: $4,533.64

Current Stock:

Quantity:

Get Our BEST Pricing FAST - click below

Click Here to get an air starter quote FAST!

Our Phone #: 1-800-353-4676

Our Email: [email protected]

Description

Description

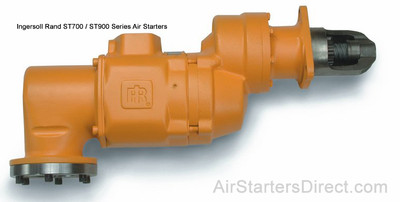

The Ingersoll Rand ST950CP03L26S-3A is a genuine IR ST900-series pre-engaged turbine air starter. It delivers up to 55 hp (41 kW) and 285 ft-lb of breakaway torque at 150 psi, and Ingersoll Rand rates C-ratio ST700/ST900 starters for diesel engines from 80 to 200 liters. It has a half-arc (90 to 150 psi) turbine, an SAE No. 3 flange and a left-hand 11-tooth 6/8 pitch pinion. Ingersoll Rand's current replacement in this size is the ST1000 series.

ST950CP03L26S-3A Specifications

Ingersoll Rand ST950CP03L26S-3A technical data
Manufacturer / series	Ingersoll Rand ST900 series (ST950)
Motor type	Turbine, 50% (half) arc, lube-free; sealed, oil-lubricated planetary gears
Engagement	Pre-engaged
Maximum power	55 hp (41 kW) at 150 psi
Breakaway torque	190 ft-lb (257 N·m) at 90 psi / 285 ft-lb (386 N·m) at 150 psi
Operating pressure	90 to 150 psi (6.2 to 10.3 bar)
Drive medium	Compressed air or natural gas (sealed)
Gear ratio	"C" gearing, 2.53:1
Mounting	SAE No. 3 flange
Pinion (code 26)	11 teeth, 6/8 pitch, left-hand
Rotation	left-hand (L)
Orientation code	-3A
Exhaust	Straight exhaust ("S" after the pinion code)
Air inlet / exhaust	1-1/2 in. type J518C flange inlet (ST700-K166 inlet flange kit) / 4 in. NPT exhaust
Air consumption	1,300 scfm at maximum power
Recommended engine size	Diesel engines from 80 to 200 L
Extended cranking (over 10 s)	Yes: IR rates the ST900 series for extended cranking
Orientations	4 inlet, 4 exhaust and 16 drive-housing positions
Weight	63 lb (28.6 kg)
Lubrication	None required for the turbine motor

Performance by Supply Pressure

Ingersoll Rand publishes these figures for the ST950 with C gearing (pre-engaged):

Supply pressure	Breakaway torque	Speed at max power	Max power	Flow at max power
90 psi (6.2 bar)	190 ft-lb (257 N·m)	1,675 rpm	30 hp (22 kW)	850 scfm (401 L/s)
120 psi (8.3 bar)	260 ft-lb (352 N·m)	1,800 rpm	45 hp (34 kW)	1,100 scfm (519 L/s)
150 psi (10.3 bar)	285 ft-lb (386 N·m)	2,000 rpm	55 hp (41 kW)	1,300 scfm (614 L/s)

ST950CP03L26S-3A Dimensions

Dimension	Inches	Millimeters
Overall length to mounting flange	19-7/32	488.2
Inlet centerline to mounting flange	14-21/64	363.9
Drive projection beyond flange	2-19/64	58.3
Height	9-5/8	244.5
Width	6-7/8	174.6

Reference dimensions from Ingersoll Rand. Confirm critical clearances against the certified drawing before you fabricate brackets or plumbing.

Confirming Fit

Match the full model number on your existing starter's nameplate, or send us the engine make, model and serial number. You can also use our Air Starter Model Finder.

How to Read the Model Number

Code	Meaning
ST9	ST900 series turbine starter
50	Percent arc: 50% (half arc, 90 to 150 psi)
C	Gear ratio 2.53:1 (B = 2.18:1, C = 2.53:1)
P	Pre-engaged (I = inertia)
03	SAE No. 3 flange (09 = IR "09" flange for D ratio)
L	left-hand rotation
26S	Pinion: 11-tooth 6/8 pitch; S = straight exhaust
-3A	Orientation code for the inlet, exhaust and drive housing

Why Choose the ST950CP03L26S?

High torque, broad range. B and C gearing options cover a wide range of starting torques.
Lube-free turbine. No lubricator and no oil mist; sealed planetary gears are maintenance free.
Air or natural gas. Sealed for gas and air applications.

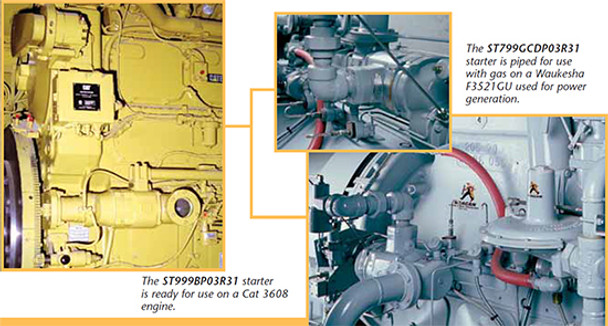

Proven design. The ST700/900 turbine family has powered diesel and gas engines in marine, oil and gas, locomotive and power generation service.
Current replacement available. Ingersoll Rand's ST1000 series is the direct successor.

ST950CP03L26S-3A FAQ

What is the opposite-rotation version of the ST950CP03L26S-3A?

The ST950CP03R25S-3A is the opposite-rotation counterpart. Power, flange and gearing are the same; only the rotation and the matching pinion code differ. Match the rotation printed on your existing starter's nameplate.

Is this starter still available, and what replaces it?

Ingersoll Rand's ST1000 series supersedes the ST700 and ST900 (the ST750 and ST950 go to the ST1060, and the ST799 and ST999 go to the ST1099, with the same ratio, drive, flange and pinion). Call us and we will confirm current availability of the ST950CP03L26S-3A and quote the ST1000 alternative side by side. See the ST1000 series.

Can it crank for a long time?

Yes. Ingersoll Rand rates the ST900 series for extended cranking.

What air supply and accessories does it need?

Supply 90 to 150 psi through a 1-1/2 in. line, with enough receiver volume to deliver up to 1,300 scfm while the engine cranks. Ingersoll Rand's matching accessories include the SRV150 relay valve (SRV150SS for gas), the ST900-267-24 1-1/2 in. strainer (300 mesh), 150BMP-1051B / 150BMP-2451B solenoid valves and SMB-618 / SMB-G618 push-button valves.

Buy from a Factory-Authorized Ingersoll Rand Distributor

AirStartersDirect.com is a factory-authorized Ingersoll Rand distributor operated by Zampini Industrial Group, which has supplied engine starting equipment since 1987. Every ST950CP03L26S-3A we sell is new, genuine Ingersoll Rand equipment. We supply the ST700 and ST900 series, the current ST1000 series, and the relay valves, strainers and tune-up kits that go with them.

Need help confirming fit? Call 1-800-353-4676 with your engine make, model and serial number for a fast quote and free selection help.

Specifications source: Ingersoll Rand Engine Starting Systems catalog and Ingersoll Rand ST900 Series Air Starters.
