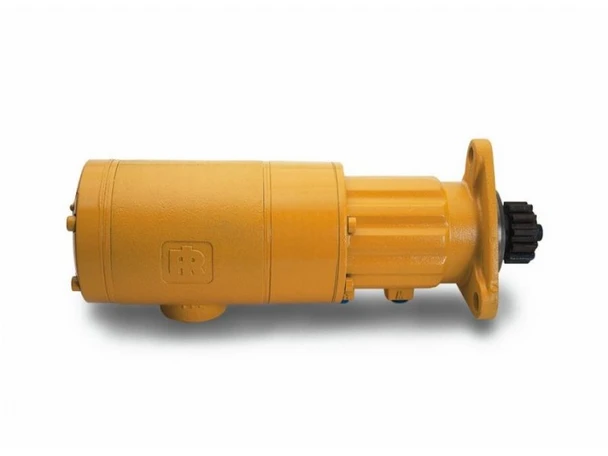

SS175GE01R071-02J Vane Air Starter by Ingersoll Rand
- SKU:
- SS175GE01R071-02J
Manufacturer: Ingersoll Rand
Guaranteed 100% Authentic
Made in the USA
Condition: New
*Rebuilt Models Have the letter "R" at the end of their model number
Get Our BEST Pricing FAST - click below
Our Phone #: 1-800-353-4676
Our Email: [email protected]
Description
The Ingersoll Rand SS175GE01R071-02J is a genuine IR SS175-series vane air starter. The SS175 is the earlier, smaller sibling of the SS350. Ingersoll Rand's current lube-free SS100 replaces the SS175 (IR's catalog states one SS100 starter replaces the 3BM, 5BM and SS175), so we recommend quoting the SS100 for new installations, and we can still supply the SS175 where available. This part number is a gas-sealed ("G"), E-gearing starter with an SAE No. 1 flange, right-hand rotation and pinion code 071.
SS175GE01R071-02J Specifications
| Ingersoll Rand SS175GE01R071-02J technical data | |
|---|---|
| Manufacturer / series | Ingersoll Rand SS175 series |
| Motor type | Sliding-vane air motor |
| Drive medium | Compressed air or natural gas (gas-sealed "G" construction) |
| Gear ratio | "E" gearing |
| Mounting | SAE No. 1 flange |
| Pinion | Code 071 (confirm against your engine's ring gear) |
| Rotation | right-hand (R) |
| Orientation code | -02J |
| Status | Superseded by the SS100 series |
Engines That Use the SS175GE01R071
Our Air Starter Model Finder, built from Ingersoll Rand application data, lists the SS175GE01R071 for:
- Cummins: 6B5.9 (5.9 L), 6BT160 (5.88 L), 6BT5.9 (5.88 L), 6BTA180 (5.88 L)
Engine builders change ring gears and starter pads between serial ranges, so confirm the ring gear and rotation before you order. Look up your engine in our Air Starter Model Finder, or call us with the engine model and serial number.
How to Read the Model Number
| Code | Meaning |
|---|---|
| SS175 | SS175 series vane starter (18 hp class) |
| G | Gas sealed |
| E | Gear ratio |
| 01 | SAE No. 1 flange |
| R | right-hand rotation |
| 071 | Pinion code |
| -02J | Orientation code |
Why Choose the SS175GE01R071?
- Direct fit for existing SS175 installations. Same flange and pinion as your current starter.
- Current alternative available. The lube-free SS100 can replace the SS175 on most small engines.
- Runs on air or natural gas. The "G" housing is gas sealed.
SS175GE01R071-02J FAQ
What replaces the SS175?
Ingersoll Rand's current SS100 series (lube-free, up to 10 L engines). Send us the model number on your SS175 nameplate and we will match the flange, pinion and rotation.
Is the SS175 still available?
Availability varies. Call us and we will confirm stock and quote the SS175 and the SS100 side by side.
Buy from a Factory-Authorized Ingersoll Rand Distributor
AirStartersDirect.com is a factory-authorized Ingersoll Rand distributor operated by Zampini Industrial Group, which has supplied engine starting equipment since 1987. Every SS175GE01R071-02J we sell is new, genuine Ingersoll Rand equipment.
Need help confirming fit? Call 1-800-353-4676 with your engine make, model and serial number for a fast quote and free selection help.
Specifications source: Ingersoll Rand Engine Starting Systems catalog and Ingersoll Rand SS100 Small Engine Air Starter.
Ingersoll Rand pneumatic air starters can replace any factory mounted starter engine and simultaneously offer a variety of helpful benefits. Compared to conventional electric starters, a pneumatic air starter occupies considerably less space as it is run by air. Pneumatic air starters are also considered safer in hazardous environments as they do not produce electrical sparks like electric starters sometimes do, thus eliminating the risk of igniting flammable materials that may be present.
Ingersoll Rand air starters have significantly more torque than electric starters of equivalent size, and that allows even a small air starter to start very large engines and turbines. In addition, electric starters as well as their wiring may become excessively hot in the event that it takes longer than expected to start the engine, while air-starters can be run for as long as their air supply lasts. Turbine starters provide even more torque and tend to be simpler, and therefore are a natural fit for turbine engines. Turbine air starters are utilized extensively on large turbofan engines commercial and military aircraft; as well as marine ships and vessels, trains, heavy construction equipment, and more.
