SS815FGB03R31-32N Vane Air Starter by Ingersoll Rand
- SKU:
- SS815FGB03R31-32N
Manufacturer: Ingersoll Rand
Guaranteed 100% Authentic
Made in the USA
Condition: New
*Rebuilt Models Have the letter "R" at the end of their model number
Get Our BEST Pricing FAST - click below
Our Phone #: 1-800-353-4676
Our Email: [email protected]
Description

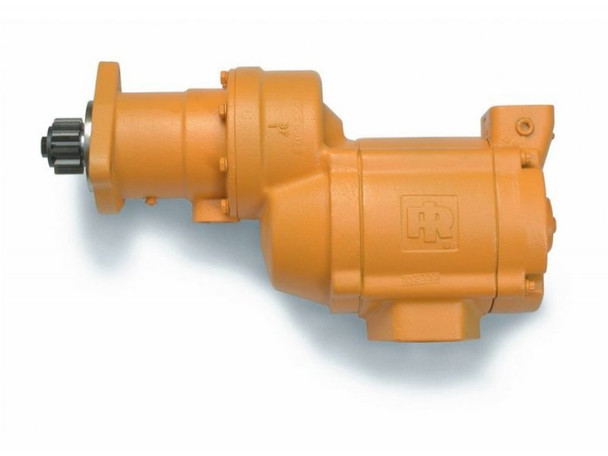

The Ingersoll Rand SS815FGB03R31-32N is a genuine IR SS800-series pre-engaged vane air starter. It delivers up to 75 hp (56 kW) and 250 ft-lb (339 N·m) of breakaway torque at 150 psi, and Ingersoll Rand rates the SS815 for diesel engines from 16 to 130 L. It has 2.18:1 "B" gearing and an SAE No. 3 flange, and it drives a right-hand 12-tooth 6/8 pitch pinion. The gas-sealed housing runs on compressed air or natural gas. This part number carries an extra "F" designation that is not part of IR's published model coding, so we confirm the exact build with you before quoting.
SS815FGB03R31-32N Specifications
| Ingersoll Rand SS815FGB03R31-32N technical data | |
|---|---|
| Manufacturer / series | Ingersoll Rand SS800 series (SS815) |
| Motor type | Sliding-vane air motor |
| Engagement | Pre-engaged: the pinion meshes fully with the ring gear before the motor starts cranking |
| Maximum power | 75 hp (56 kW) at 150 psi |
| Breakaway torque | 170 ft-lb (230 N·m) at 90 psi / 250 ft-lb (339 N·m) at 150 psi |
| Operating pressure | 90 to 150 psi (6.2 to 10.3 bar) |
| Drive medium | Compressed air or natural gas (gas-sealed "G" construction) |
| Gear ratio | "B" offset gearing, 2.18:1 |
| Mounting | SAE No. 3 flange |
| Pinion (code 31) | 12 teeth, 6/8 pitch, right-hand |
| Rotation | right-hand (R) |
| Orientation code | -32N (sets the inlet, exhaust and drive-housing positions) |
| Air inlet / exhaust | 1-1/2 in. NPT inlet / 2-1/2 in. NPT exhaust |
| Air consumption | 1,700 scfm (802 L/s) at maximum power and 150 psi |
| Recommended engine size | Diesel 16 to 130 L; carbureted gas engines up to 640 L (SS800 family) |
| Extended cranking (over 10 s) | Not rated |
| Orientations | 4 inlet, 4 exhaust and 16 drive-housing positions (every 22.5°) |
| Weight | 93 lb (42.2 kg) |
| Lubrication | Lubricated vane motor. Use an in-line lubricator or the backcap injection-lube ports. |
| Service kit | SS800-TK2 tune-up kit |
Performance by Supply Pressure
Ingersoll Rand publishes these figures for the SS810 and SS815:
| Supply pressure | Breakaway torque | Speed at max power | Max power | Flow at max power |
|---|---|---|---|---|
| 90 psi (6.2 bar) | 170 ft-lb (230 N·m) | 2,700 rpm | 45 hp (34 kW) | 1,100 scfm (519 L/s) |
| 120 psi (8.3 bar) | 205 ft-lb (278 N·m) | 2,800 rpm | 58 hp (43 kW) | 1,250 scfm (590 L/s) |
| 150 psi (10.3 bar) | 250 ft-lb (339 N·m) | 3,200 rpm | 75 hp (56 kW) | 1,700 scfm (802 L/s) |
SS815FGB03R31-32N Dimensions
| Dimension | Inches | Millimeters |
|---|---|---|
| Overall length to mounting flange | 17-25/32 | 451.6 |
| Inlet centerline to mounting flange | 16-1/2 | 419.1 |
| Drive projection beyond flange | 2 | 50.8 |
| Height | 9 | 228.6 |
| Width | 6-25/32 | 172.2 |
Reference dimensions from Ingersoll Rand. Confirm critical clearances against the certified drawing before you fabricate brackets or plumbing.
Engines That Use the SS815GB03R31
Our Air Starter Model Finder, built from Ingersoll Rand application data, lists the SS815GB03R31 for:
- Waukesha: 12VAT25D (176.72 L), 16VAT25GL (235.61 L), 2895G (SI/L) (47 L), 3512GL (58 L), 5108G (SI/L) (95 L), 5115GL (84 L), 5790G (SI/L) (95 L), 6AT25D (88.36 L), 6LAT25GL (88.36 L), 6LK (39.43 L), and more
- Caterpillar: 3412 (27 L), 3508 (34.5 L), 3512 (51.8 L), 3516 (69 L), 3606 (111 L), 3608 (148 L), 3612 (221 L), 3616 (295 L), 3618 (332.6 L), C-32 (32.1 L), and more
- Cummins: CTA-38P, K38 SERIES (37.69 L), L-600 (37.84 L), LRT (40.59 L), NH-12 (50.26 L), NVH-1200 (24.35 L), QSK45 (45 L), QSK60 (60 L), QST30 (30 L), QSW73 (73 L), and more
- Dresser-Rand: 10SVG (226.55 L), 10TVR (221.22 L), 10TVS (193.37 L), 6SVG (135.93 L), 6TVR (132.73 L), 8SVG (181.24 L), 8TVR (176.98 L), 8TVS (154.86 L), PSVG-10 (226.55 L), PSVG-12 (271.86 L), and more
- Alsthom ATL: 10PA4200 (66 L), 12PA4200 (79.2 L), 12PA4V185VG (68 L), 16PA4200 (105.6 L), 16PA4V185VG (90 L), 18PA4V185VG (101 L), 6PA4H185VG (34 L), 8PA4L185VG (45 L), 8PA4V200 (52.7 L)
- Detroit Diesel: 12V-149 (29.3 L), 12V4000, 16V-149 (39.07 L), 16V-2000 (32 L), 16V-92 (24.12 L), 16V4000 (65 L), 8V4000, SERIES 4000
- Sacm: UD30-12V (53.26 L), UD30-16V (69.64 L), UD33-12 (86.61 L), UD33-16V (88.08 L), UD45-12 (121.26 L), UD45-16 (163.05 L), UD45-20 (203.81 L)
- Alco: 244 (131.4 L), 251 (65.7 L), 251 (87.6 L), 6L-251 (65.7 L), 8V-251 (87.6 L)
Engine builders change ring gears and starter pads between serial ranges, so confirm the ring gear and rotation before you order. Look up your engine in our Air Starter Model Finder, or call us with the engine model and serial number.
How to Read the Model Number
| Code | Meaning |
|---|---|
| SS8 | SS800 series vane starter |
| 15 | Pre-engaged type (10 = inertia; 15, 25, 50 = pre-engaged) |
| G | Gas sealed, for air or natural gas |
| B | Gearing 2.18:1 (B = 2.18:1, C = 2.53:1, D = 3.44:1) |
| 03 | SAE No. 3 mounting flange |
| R | right-hand rotation |
| 31 | Pinion: 12-tooth 6/8 pitch |
| -32N | Orientation code. It sets how the inlet, exhaust and drive housing are positioned, not whether the starter fits. |
| F | Additional designation not defined in IR's published coding; we confirm the build |
Why Choose the SS815GB03R31?
- Powerful and rugged. A 75 hp vane motor in the large-frame SS800 design that Ingersoll Rand calls the standard by which other starters are measured.
- Pre-engaged drive. The pinion is fully in mesh before cranking begins, which reduces ring gear wear on heavy engines.
- Runs on air or natural gas. Every SS800 model is gas sealed.
- No sparks, no batteries. A pneumatic starter has no electrical arcing and does not lose power to cold batteries, so it suits marine, oil and gas, mining and standby power service.
- Flexible mounting. The 4 inlet x 4 exhaust x 16 drive-housing orientations let one starter fit many engine layouts, and the starter is field serviceable.
SS815FGB03R31-32N FAQ
What is the opposite-rotation version of the SS815FGB03R31-32N?
The SS815FGB03L32 is the opposite-rotation counterpart. Power, flange and gearing are the same; only the rotation and the matching pinion code differ. Match the rotation printed on your existing starter's nameplate.
What is the difference between the SS810, SS815, SS825 and SS850?
All four use the same 75 hp SS800 vane motor. The SS810 is an inertia starter; the SS815, SS825 and SS850 are pre-engaged. Gearing sets the engine size: SS810 and SS815 use B gearing (diesel 16 to 130 L), the SS825 uses C gearing (80 to 200 L) and the SS850 uses D gearing (160 to 320 L). Compare the full SS800 series.
Can it run on natural gas?
Yes. The "G" in the model number means the starter is gas sealed. When running on gas, pipe the exhaust away to a safe location as required by your site's codes.
Can it crank for a long time?
Ingersoll Rand does not rate this starter for extended cranking (more than 10 seconds). For hard-starting engines or long crank cycles, step up to a larger SS800 model or choose a turbine such as the ST1000 series.
What air supply and accessories does it need?
Provide a 90 to 150 psi supply through a 1-1/2 in. line, with enough receiver volume to deliver up to 1,700 scfm while the engine cranks. Ingersoll Rand's matching accessories include SRV125 or SRV125T relay valve, ST900-267-24 strainer, 150BMP-1051B (12 V) or 150BMP-2451B (24 V) solenoid valve, SS800-A674 muffler.
Buy from a Factory-Authorized Ingersoll Rand Distributor
AirStartersDirect.com is a factory-authorized Ingersoll Rand distributor operated by Zampini Industrial Group, which has supplied engine starting equipment since 1987. Every SS815FGB03R31-32N we sell is new, genuine Ingersoll Rand equipment. We can supply it with the inlet, exhaust and drive-housing orientation your installation needs, along with relay valves, strainers, lubricators and tune-up kits. See the full SS800 series.
Need help confirming fit? Call 1-800-353-4676 with your engine make, model and serial number for a fast quote and free selection help.
Specifications source: Ingersoll Rand Engine Starting Systems catalog and Ingersoll Rand SS800 Series Air Starters.
Ingersoll Rand pneumatic air starters can replace any factory mounted starter engine and simultaneously offer a variety of helpful benefits. Compared to conventional electric starters, a pneumatic air starter occupies considerably less space as it is run by air. Pneumatic air starters are also considered safer in hazardous environments as they do not produce electrical sparks like electric starters sometimes do, thus eliminating the risk of igniting flammable materials that may be present.
Ingersoll Rand air starters have significantly more torque than electric starters of equivalent size, and that allows even a small air starter to start very large engines and turbines. In addition, electric starters as well as their wiring may become excessively hot in the event that it takes longer than expected to start the engine, while air-starters can be run for as long as their air supply lasts. Turbine starters provide even more torque and tend to be simpler, and therefore are a natural fit for turbine engines. Turbine air starters are utilized extensively on large turbofan engines commercial and military aircraft; as well as marine ships and vessels, trains, heavy construction equipment, and more.
