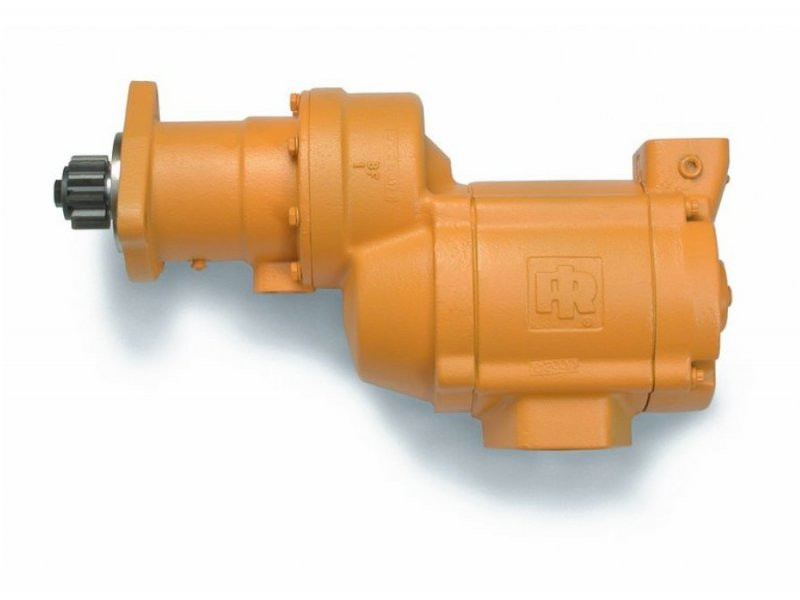

SS815GB03L32 Vane Air Starter by Ingersoll Rand

The Ingersoll Rand SS815GB03L32 is a genuine IR SS800-series pre-engaged vane air starter. It delivers up to 75 hp (56 kW) and 250 ft-lb (339 N·m) of breakaway torque at 150 psi, and Ingersoll Rand rates the SS815 for diesel engines from 16 to 130 L. It has 2.18:1 "B" gearing and an SAE No. 3 flange, and it drives a left-hand 12-tooth 6/8 pitch pinion. The gas-sealed housing runs on compressed air or natural gas.

SS815GB03L32 Specifications

Performance by Supply Pressure

Ingersoll Rand publishes these figures for the SS810 and SS815:

SS815GB03L32 Dimensions

Reference dimensions from Ingersoll Rand. Confirm critical clearances against the certified drawing before you fabricate brackets or plumbing.

Engines That Use the SS815GB03L32

Our Air Starter Model Finder, built from Ingersoll Rand application data, lists the SS815GB03L32 for:

• CES-Ajax: DP250 (72.3 L), DPC105 (79 L), DPC115 (52.5 L), DPC140 (86 L), DPC162 (122 L), DPC230 (105 L), DPC280 (172 L), DPC325 (92.6 L), DPC360 (92 L), DPC80 (60 L), and more

• Daihatsu: 5DK-20 (47.1 L), 5DK-26 (100.83 L)

Engine builders change ring gears and starter pads between serial ranges, so confirm the ring gear and rotation before you order. Look up your engine in our Air Starter Model Finder, or call us with the engine model and serial number.

How to Read the Model Number

SS815GB03L32 Orientations and Builds

This starter is also listed in these orientations and configurations. The motor, gearing, flange and pinion are the same; the suffix sets the inlet, exhaust and drive-housing positions or marks a special build: SS815GB03L32-02G, SS815GB03L32-20D, SS815GB03L32-22G, SS815GB03L32-22H, SS815GB03L32-22J, SS815GB03L32-31M.

Why Choose the SS815GB03L32?

• Powerful and rugged. A 75 hp vane motor in the large-frame SS800 design that Ingersoll Rand calls the standard by which other starters are measured.

• Pre-engaged drive. The pinion is fully in mesh before cranking begins, which reduces ring gear wear on heavy engines.

• Runs on air or natural gas. Every SS800 model is gas sealed.

• No sparks, no batteries. A pneumatic starter has no electrical arcing and does not lose power to cold batteries, so it suits marine, oil and gas, mining and standby power service.

• Flexible mounting. The 4 inlet x 4 exhaust x 16 drive-housing orientations let one starter fit many engine layouts, and the starter is field serviceable.

SS815GB03L32 FAQ

What is the opposite-rotation version of the SS815GB03L32?

The SS815GB03R31 is the opposite-rotation counterpart. Power, flange and gearing are the same; only the rotation and the matching pinion code differ. Match the rotation printed on your existing starter's nameplate.

What is the difference between the SS810, SS815, SS825 and SS850?

All four use the same 75 hp SS800 vane motor. The SS810 is an inertia starter; the SS815, SS825 and SS850 are pre-engaged. Gearing sets the engine size: SS810 and SS815 use B gearing (diesel 16 to 130 L), the SS825 uses C gearing (80 to 200 L) and the SS850 uses D gearing (160 to 320 L). Compare the full SS800 series.

Can it run on natural gas?

Yes. The "G" in the model number means the starter is gas sealed. When running on gas, pipe the exhaust away to a safe location as required by your site's codes.

Can it crank for a long time?

Ingersoll Rand does not rate this starter for extended cranking (more than 10 seconds). For hard-starting engines or long crank cycles, step up to a larger SS800 model or choose a turbine such as the ST1000 series.

What air supply and accessories does it need?

Provide a 90 to 150 psi supply through a 1-1/2 in. line, with enough receiver volume to deliver up to 1,700 scfm while the engine cranks. Ingersoll Rand's matching accessories include SRV125 or SRV125T relay valve, ST900-267-24 strainer, 150BMP-1051B (12 V) or 150BMP-2451B (24 V) solenoid valve, SS800-A674 muffler.

Buy from a Factory-Authorized Ingersoll Rand Distributor

AirStartersDirect.com is a factory-authorized Ingersoll Rand distributor operated by Zampini Industrial Group, which has supplied engine starting equipment since 1987. Every SS815GB03L32 we sell is new, genuine Ingersoll Rand equipment. We can supply it with the inlet, exhaust and drive-housing orientation your installation needs, along with relay valves, strainers, lubricators and tune-up kits. See the full SS800 series.

Need help confirming fit? Call 1-800-353-4676 with your engine make, model and serial number for a fast quote and free selection help.

Specifications source: Ingersoll Rand Engine Starting Systems catalog and Ingersoll Rand SS800 Series Air Starters.
