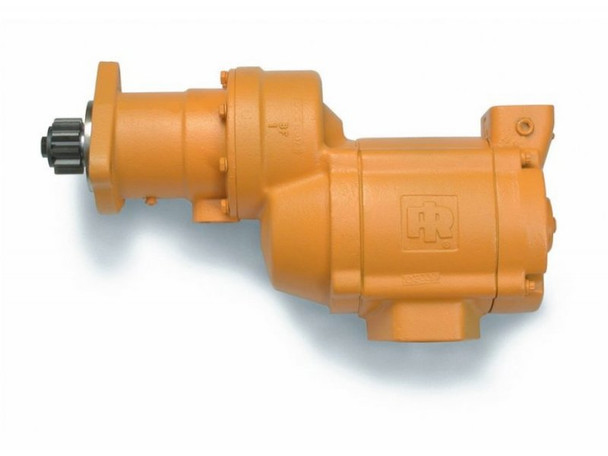

The Ingersoll Rand SS850GD09L962 is a genuine IR SS800-series pre-engaged vane air starter. It delivers up to 75 hp (56 kW) and 415 ft-lb (562 N·m) of breakaway torque at 150 psi, and Ingersoll Rand rates the SS850 for diesel engines from 160 to 320 L. It has 3.44:1 "D" gearing and an IR "09" flange, and it drives a left-hand 17-tooth 3.5 module pitch pinion. The gas-sealed housing runs on compressed air or natural gas.

SS850GD09L962 Specifications

Ingersoll Rand SS850GD09L962 technical data
Manufacturer / series	Ingersoll Rand SS800 series (SS850)
Motor type	Sliding-vane air motor
Engagement	Pre-engaged: the pinion meshes fully with the ring gear before the motor starts cranking
Maximum power	75 hp (56 kW) at 150 psi
Breakaway torque	260 ft-lb (352 N·m) at 90 psi / 415 ft-lb (562 N·m) at 150 psi
Operating pressure	90 to 150 psi (6.2 to 10.3 bar)
Drive medium	Compressed air or natural gas (gas-sealed "G" construction)
Gear ratio	"D" offset gearing, 3.44:1
Mounting	IR "09" flange
Pinion (code 962)	17 teeth, 3.5 module pitch, left-hand
Rotation	left-hand (L)
Air inlet / exhaust	1-1/2 in. NPT inlet / 2-1/2 in. NPT exhaust
Air consumption	1,275 scfm (602 L/s) at maximum power and 150 psi
Recommended engine size	Diesel 160 to 320 L; carbureted gas engines up to 640 L (SS800 family)
Extended cranking (over 10 s)	Not rated
Orientations	4 inlet, 4 exhaust and 16 drive-housing positions (every 22.5°)
Weight	123 lb (55.8 kg)
Lubrication	Lubricated vane motor. Use an in-line lubricator or the backcap injection-lube ports.

Performance by Supply Pressure

Ingersoll Rand publishes these figures for the SS850:

Supply pressure	Breakaway torque	Speed at max power	Max power	Flow at max power
90 psi (6.2 bar)	260 ft-lb (352 N·m)	1,600 rpm	45 hp (34 kW)	800 scfm (378 L/s)
120 psi (8.3 bar)	340 ft-lb (461 N·m)	1,800 rpm	58 hp (43 kW)	1,000 scfm (472 L/s)
150 psi (10.3 bar)	415 ft-lb (562 N·m)	1,900 rpm	75 hp (56 kW)	1,275 scfm (602 L/s)

SS850GD09L962 Dimensions

Dimension	Inches	Millimeters
Overall length to mounting flange	15-1/2	393.7
Inlet centerline to mounting flange	14-1/4	362.0
Drive projection beyond flange	7-11/32	186.5
Height	9	228.6
Width	6-25/32	172.2

Reference dimensions from Ingersoll Rand. Confirm critical clearances against the certified drawing before you fabricate brackets or plumbing.

Confirming Fit

Match the full model number on your existing starter's nameplate, or send us the engine make, model and serial number. You can also use our Air Starter Model Finder.

How to Read the Model Number

Code	Meaning
SS8	SS800 series vane starter
50	Pre-engaged type (10 = inertia; 15, 25, 50 = pre-engaged)
G	Gas sealed, for air or natural gas
D	Gearing 3.44:1 (B = 2.18:1, C = 2.53:1, D = 3.44:1)
09	IR "09" mounting flange (larger, for D-ratio units)
L	left-hand rotation
962	Pinion: 17-tooth 3.5 module pitch

Why Choose the SS850GD09L962?

Powerful and rugged. A 75 hp vane motor in the large-frame SS800 design that Ingersoll Rand calls the standard by which other starters are measured.
Pre-engaged drive. The pinion is fully in mesh before cranking begins, which reduces ring gear wear on heavy engines.
Runs on air or natural gas. Every SS800 model is gas sealed.
No sparks, no batteries. A pneumatic starter has no electrical arcing and does not lose power to cold batteries, so it suits marine, oil and gas, mining and standby power service.
Flexible mounting. The 4 inlet x 4 exhaust x 16 drive-housing orientations let one starter fit many engine layouts, and the starter is field serviceable.

SS850GD09L962 FAQ

What is the opposite-rotation version of the SS850GD09L962?

The SS850GD09R952 is the opposite-rotation counterpart. Power, flange and gearing are the same; only the rotation and the matching pinion code differ. Match the rotation printed on your existing starter's nameplate.

What is the difference between the SS810, SS815, SS825 and SS850?

All four use the same 75 hp SS800 vane motor. The SS810 is an inertia starter; the SS815, SS825 and SS850 are pre-engaged. Gearing sets the engine size: SS810 and SS815 use B gearing (diesel 16 to 130 L), the SS825 uses C gearing (80 to 200 L) and the SS850 uses D gearing (160 to 320 L). Compare the full SS800 series.

Can it run on natural gas?

Yes. The "G" in the model number means the starter is gas sealed. When running on gas, pipe the exhaust away to a safe location as required by your site's codes.

Can it crank for a long time?

Ingersoll Rand does not rate this starter for extended cranking (more than 10 seconds). For hard-starting engines or long crank cycles, step up to a larger SS800 model or choose a turbine such as the ST1000 series.

What air supply and accessories does it need?

Provide a 90 to 150 psi supply through a 1-1/2 in. line, with enough receiver volume to deliver up to 1,275 scfm while the engine cranks. Ingersoll Rand's matching accessories include SRV125 or SRV125T relay valve, ST900-267-24 strainer, 150BMP-1051B (12 V) or 150BMP-2451B (24 V) solenoid valve, SS800-A674 muffler.
