150BMGE21RH-6 Vane Air Starter by Ingersoll Rand

150BMGE21RH-6 Vane Air Starter by Ingersoll Rand

SKU:: 150BMGE21RH-6
UPC:

Price: $2,202.05

Current Stock:

Quantity:

Get Our BEST Pricing FAST - click below

Click Here to get an air starter quote FAST!

Our Phone #: 1-800-353-4676

Our Email: [email protected]

Description

Description

The Ingersoll Rand 150BMGE21RH-6 is a genuine IR 150BM-series inertia-engagement vane air starter. It delivers up to 32 hp (24 kW) and 155 ft-lb (210 N·m) of breakaway torque at 150 psi. Ingersoll Rand recommends it for diesel engines from 8 to 27 liters. It has 3.46:1 "E" gearing, a right-hand 11-tooth 6/8 pitch inertia pinion, and a gas-sealed housing that runs on compressed air or natural gas. Applications include the Detroit Diesel 8V-71, 8V-92 and 12V-71 and the Cummins KTA14 and KTA19.

150BMGE21RH-6 Specifications

Ingersoll Rand 150BMGE21RH-6 technical data
Manufacturer / series	Ingersoll Rand 150BM series (150BMG model)
Motor type	Sliding-vane air motor
Engagement	Inertia (Bendix-type): the spinning pinion throws into the ring gear as the starter accelerates
Maximum power	32 hp (24 kW) at 150 psi
Breakaway torque	100 ft-lb (136 N·m) at 90 psi / 155 ft-lb (210 N·m) at 150 psi
Operating pressure	90 to 150 psi (6.2 to 10.3 bar)
Drive medium	Compressed air or natural gas (150BMG models are gas sealed)
Gear ratio	"E" offset gearing, 3.46:1
Drive housing	Code 21 inertia drive housing with SAE No. 3 mounting flange
Pinion (code 6)	11 teeth, 6/8 diametral pitch, 20° pressure angle
Rotation	Right hand (RH)
Air inlet / exhaust	1-1/4 in. NPT inlet / 1-1/4 in. NPT exhaust
Air consumption	680 scfm (321 L/s) at maximum power and 150 psi
Recommended engine size	Diesel engines from 8 to 27 L
Extended cranking (over 10 s)	Not rated
Orientations	4 inlet, 4 exhaust and 18 drive-housing positions (every 20°)
Weight	38 lb (17.2 kg)
Overall length	13-19/32 in. (345.3 mm). The drive extends 4-7/16 in. (112.7 mm) past the flange face.
Lubrication	Lubricated vane motor. Use an in-line lubricator (NL-24-8) or the backcap injection-lube ports.
Service kit	150BM-TK2 tune-up kit

Performance by Supply Pressure

Ingersoll Rand publishes these figures for the 150BMGE and 150BMPE starters:

Supply pressure	Breakaway torque	Speed at max power	Max power	Flow at max power
90 psi (6.2 bar)	100 ft-lb (136 N·m)	1,700 rpm	16 hp (12 kW)	380 scfm (179 L/s)
120 psi (8.3 bar)	130 ft-lb (176 N·m)	1,900 rpm	24 hp (18 kW)	500 scfm (236 L/s)
150 psi (10.3 bar)	155 ft-lb (210 N·m)	2,200 rpm	32 hp (24 kW)	680 scfm (321 L/s)

150BMGE21RH-6 Dimensions

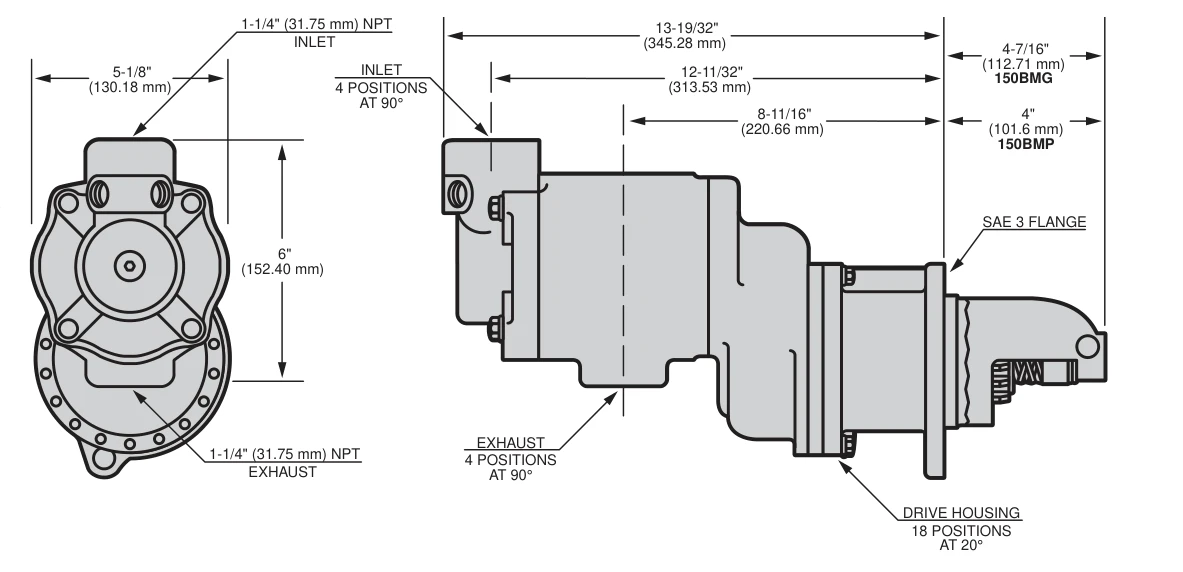

Reference dimensions from Ingersoll Rand. The 150BMG inertia drive extends 4-7/16 in. past the flange; the pre-engaged 150BMP extends 4 in.

Engines That Use the 150BMGE21RH-6

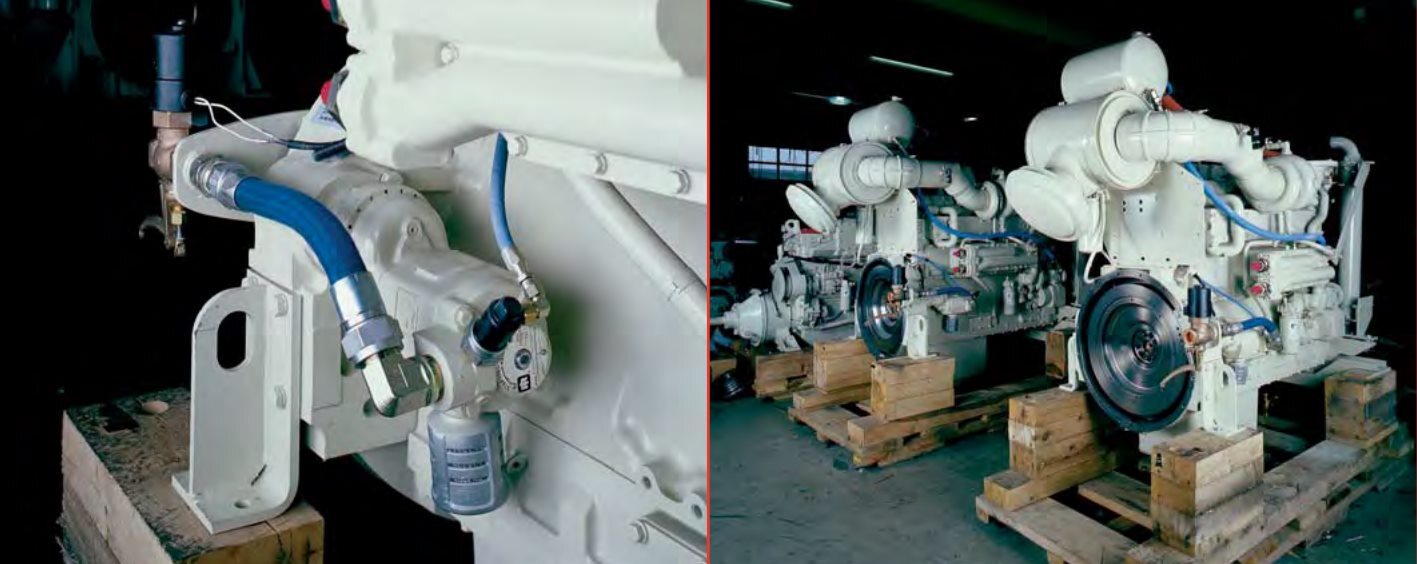

150BMGE21RH-6 starters on Cummins KTA14-M3 and KTA19-M4I marine engines. Photo: Ingersoll Rand.

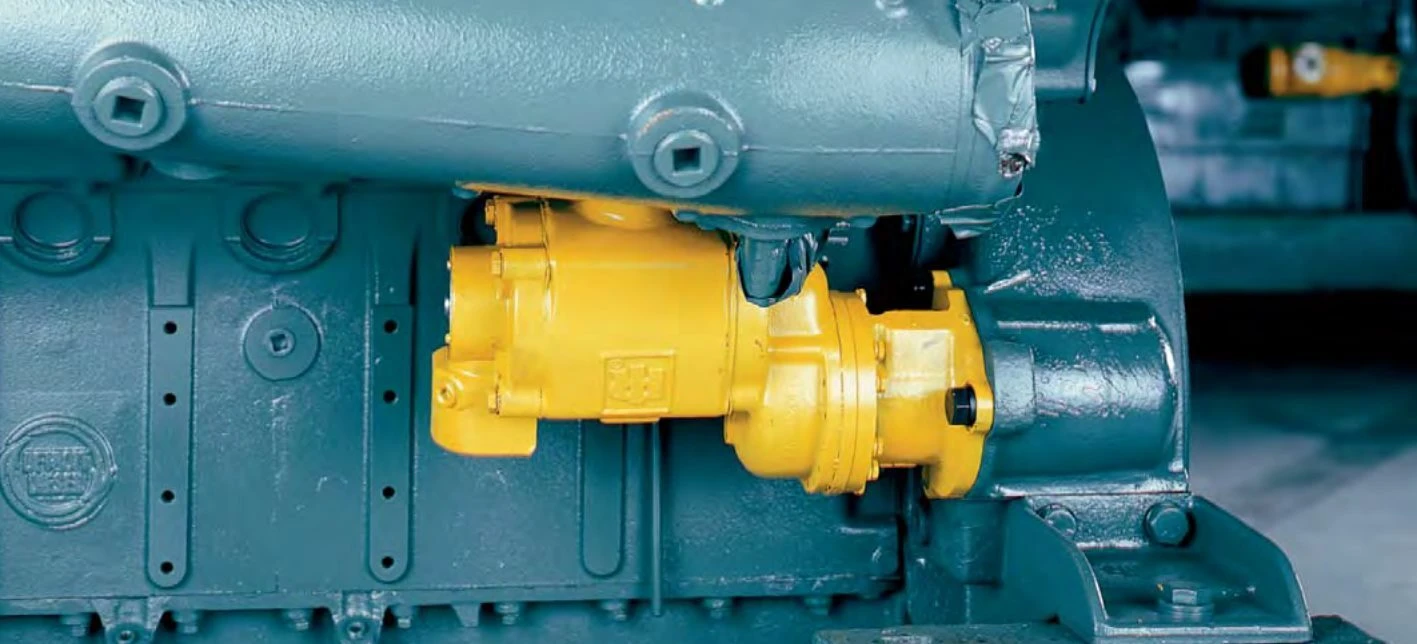

A 150BMGE21RH-6 on a Detroit Diesel 12V-71. Photo: Ingersoll Rand.

Ingersoll Rand application data and installed examples list the 150BMGE21RH-6 for:

Detroit Diesel: 8V-71, 8V-92 and 12V-71
Cummins: KTA14 and KTA19 marine and industrial engines
Waukesha: H24 and WOK series engines

The starter must match your flywheel ring gear (11-tooth pinion, 6/8 pitch, right-hand rotation) and your engine's SAE No. 3 starter pad. Look up your engine in our Air Starter Model Finder, or call us with the engine model and serial number.

How to Read the Model Number

Code	Meaning
150	Starter size (150 frame)
BMG	Vane motor, inertia engagement, gas sealed (BMP = pre-engaged)
E	Gearing, 3.46:1 (D = 3.94:1)
21	Inertia drive housing
RH	Right-hand rotation (LH = left hand)
6	Pinion: 11 teeth, 6/8 pitch
-XXX (optional suffix)	Orientation code for the inlet, exhaust and drive housing, e.g. 150BMGE21RH6-02O. The suffix changes how the starter is clocked, not whether it fits.

Why Choose the 150BMGE21RH-6?

Simple inertia drive. No separate engagement piston or shift mechanism, which keeps the starter compact and easy to service.
High torque from a vane motor. The vane motor and 3.46:1 gearing give strong breakaway torque for mid-size diesels.
Runs on air or natural gas. The gas-sealed 150BMG housing lets you use pipeline gas where compressed air isn't available.
No sparks, no batteries. A pneumatic starter has no electrical arcing, so it suits engine rooms, offshore platforms and hazardous locations.
Fits many installations. The inlet, exhaust and drive housing can be clocked into 288 combinations, and the starter is field serviceable with the 150BM-TK2 kit.

150BMGE21RH-6 FAQ

What is the difference between an inertia and a pre-engaged starter?

An inertia starter like the 150BMGE21RH-6 spins up and throws its pinion into the ring gear as it accelerates. A pre-engaged starter, such as the 150BMPE88R54-020, pushes the pinion fully into mesh before the motor starts to turn. Pre-engaged starters are gentler on ring gears, while inertia starters are simpler. Always replace a starter with the engagement type your engine was designed for.

What is the difference between the 150BMGE21RH-6 and the 150BMGE21RH6-02O?

They are the same starter. The -02O suffix specifies a particular inlet, exhaust and drive-housing orientation. If you are replacing an existing starter, match the full number on its nameplate, or tell us how your inlet and exhaust ports are positioned.

Is there a turbine alternative?

Yes. Ingersoll Rand supersedes current 150BM models with its 150TM "F" turbine starters by changing the B to a T and the E to an F. The 150BMGE21RH-6 crosses to the 150TMGF21RH6. It is also sealed for air or gas, uses the proven 150BM front end, keeps the same inlet and outlet locations for an easy change-out, and needs no external lubrication.

What air supply and accessories does it need?

Supply 90 to 150 psi through a 1-1/4 in. line, with enough receiver volume to deliver up to 680 scfm while the engine cranks. Ingersoll Rand's matching accessories are the SRV125 1-1/4 in. relay valve (SRV125T for vehicles), the NL-24-8 in-line lubricator, the 150BM-A674 muffler, and the 150BMP-1051B (12 V) or 150BMP-2451B (24 V) solenoid valve.

Can it crank for a long time?

Ingersoll Rand does not rate the 150BM for extended cranking (more than 10 seconds). For hard-starting engines or cold climates, choose a larger starter or a turbine model.

Buy from a Factory-Authorized Ingersoll Rand Distributor

AirStartersDirect.com is a factory-authorized Ingersoll Rand distributor operated by Zampini Industrial Group, which has supplied engine starting equipment since 1987. Every 150BMGE21RH-6 we sell is new, genuine Ingersoll Rand equipment. We also stock the complete 150BM series, starter drives, tune-up kits, relay valves and lubricators.

Need help confirming fit? Call 1-800-353-4676 with your engine make, model and serial number for a fast quote and free selection help.

Specifications source: Ingersoll Rand Engine Starting Systems catalog, 150BM series, and Ingersoll Rand vane and turbine air starters.
